MeidyaCoM-Policy is an extension of MeidyaCoM project. MeidyaCoM project supports the modeling of correct by design Publish/Subscribe architectural style and the basic reconfiguration operations for the adaptation of software architecture. MeidyaCoM-Policy is an approach which proposes a way of applying these operations with respect to architectural style by the means of repair policies.

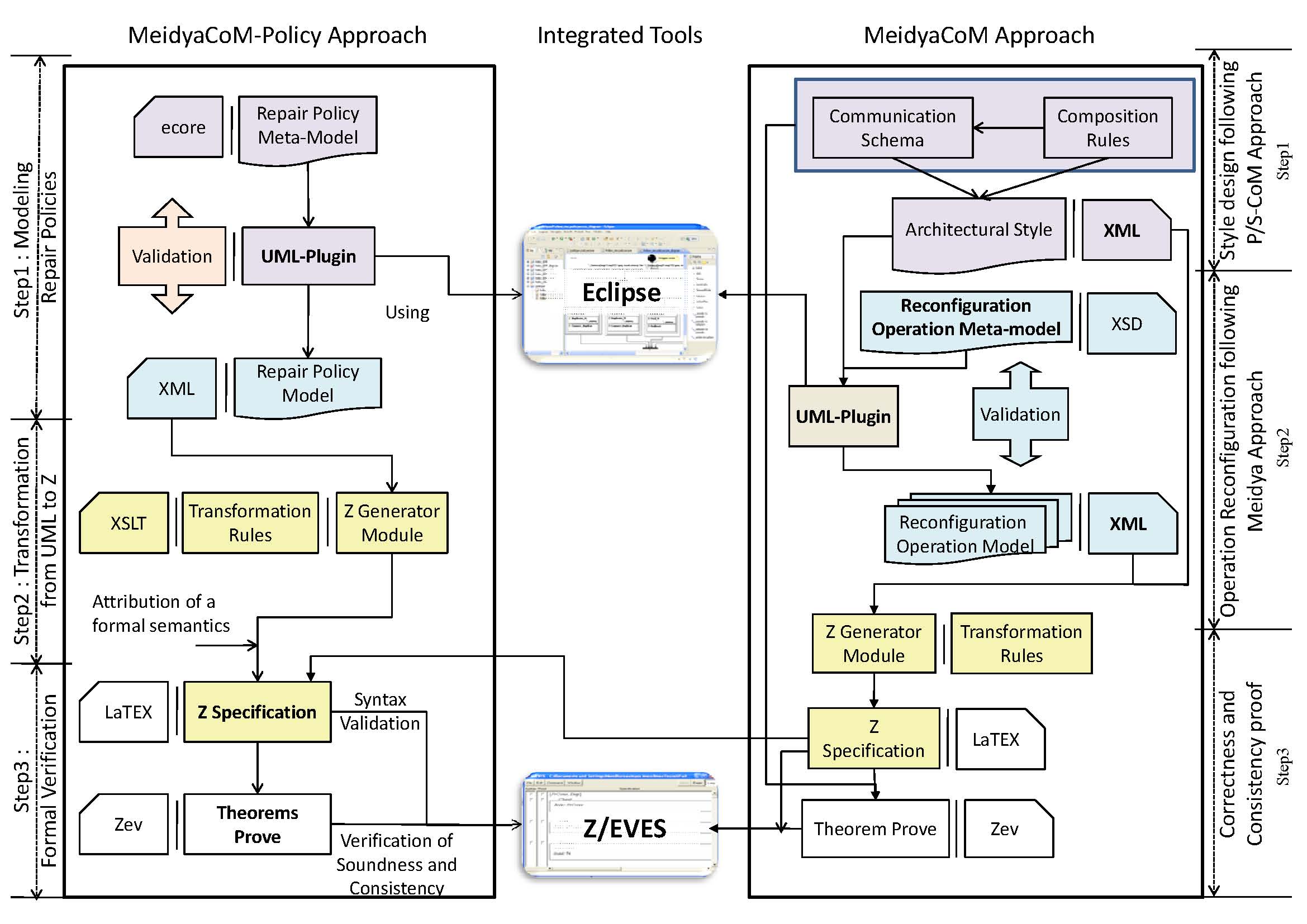

The MeidyaCoM-Policy approach is based principally on three steps:

• In the first step, we propose a UML-based approach for modeling repair policies. We introduce a new UML profile, using extended UML 2.0 notations. The profile guides and assists design activities for describing repair policies using a visual notation. A software environment supporting the different features of this approach has been implemented and integrated as a plug-in in the open source Eclipse framework.
• In the second step, we implement a rule-based generator which automatically translates the repair policy model specified using our UML profile into Z specifications. From MeidyaCoM project, we obtain the architectural style described with Z specifications. In our work, we improved this architectural style with QoS properties.
• In the third step, we use the theorem proving Z/Eves to prove the soundness (i.e. every execution of the policy will place the system in a correct state w.r.t. the original style) and the consistency (i.e. absence of any contradiction between architectural invariants) of the generated repair policies.

Tools Support

MeidyaCoM-Policy is enhanced by an Eclipse plug-in. It is a graphical modeling tool that ensures an easy and efficient modeling way for users. This plug-in allows us to create a graphical editor which implements our UML profile.

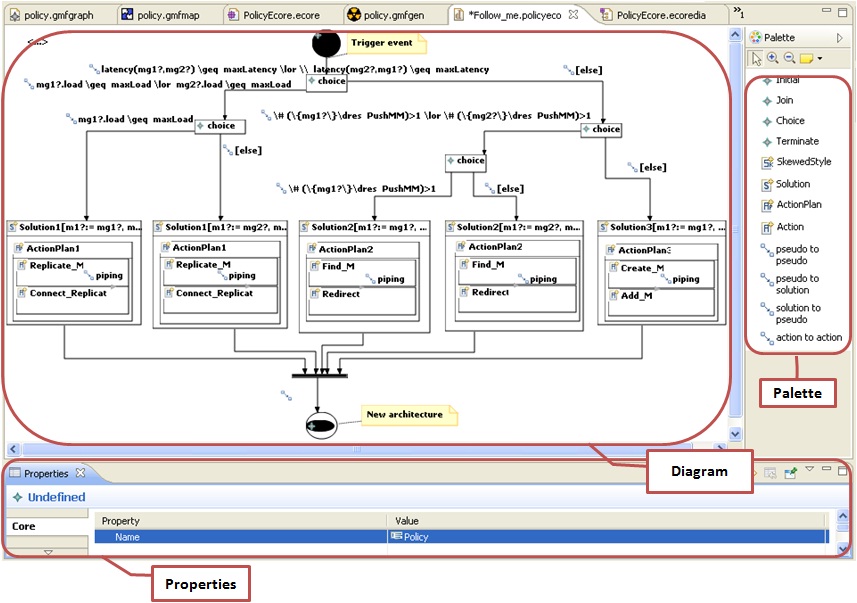

The repair policy diagram editor is a tool where diagrams as well as graphical elements can be created to model policies. Graphical elements can be picked up from a Tool palette and created in the Diagram editor pane in a “drag-and-drop” way.

The graphical editor generates an XML file (Download the PolicyFollowMe.xml). The plug-in transforms this XML file, according to transformation rules expressed with the XSLT language (eXtensible Styles Language Transformation), (Download the PolicyTransformation.xsl) into Z specifications saved in a LATEX (.tex) file. This LATEX file will then be imported under the Z/Eves theorem prover to visualize Z schemas, to validate their syntax and to verify the theorems (Download the ProofSteps.pdf).

Demonstration

Case Studies

We applied MeidyaCom-Policy on two case studies. As an example, we present:

• Modelling phase: The Screenshot of the models
• Validation phase: The generated XML file
• Verification phase: The generated Z file

• Emergency Operation System (EOS) [link]

• Follow Me (FM) [link]

Download

MeidyaCom-Policy Plug-in Description : A plug-in based on a UML profile. The repair policy diagram editor is a tool where diagrams as well as graphical elements can be created to model policies. Graphical elements can be picked up from a tool palette and created in the diagram editor pane in a “drag-and-drop” way.

Setup : The MeidyaCom-Policy plug-in should be added under the plugins directory of the Eclipse framework.

• Download the MeidyaCom-Policy Plug-in

• Download the PolicyTransformation.xsl

Contributors

• Msc. Imen Tounsi [Email]
• Dr. Mohamed Hadj Kacem [Email]
• Dr. Imen Loulou [Email]
• Pr. Ahmed Hadj Kacem [Email]

Research Group

ReDCAD Research Unit (Tunisia)

National School of Engineers of Sfax
Route de la Soukra km 3.5 B.P., 1173, 3038 Sfax - Tunisia
